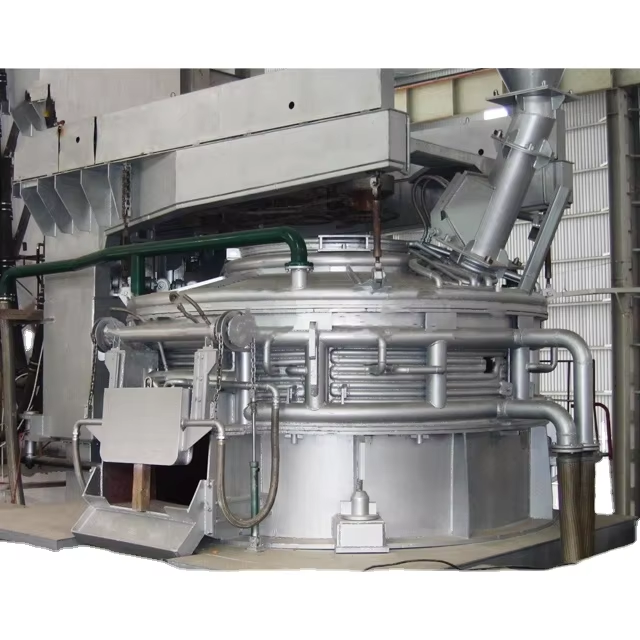

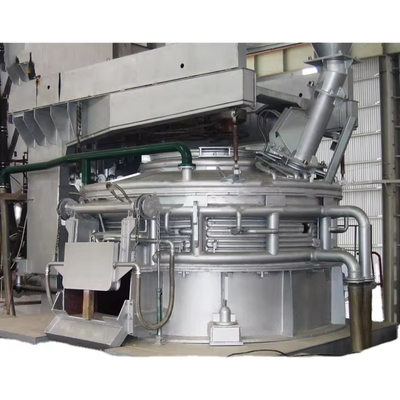

Large Capacity Metal Silicon 50 Ton Electric Arc Furnace Manufacturers with Transformers

Nguồn gốc Trung Quốc
Hàng hiệu Shaanxi Chengda
Chứng nhận ISO 9001
Số mô hình Đàm phán dựa trên khả năng xử lý thiết bị
Số lượng đặt hàng tối thiểu 1 đơn vị
Giá bán The price will be negotiated based on the technical requirements and supply scope of Party A
chi tiết đóng gói Thảo luận theo các yêu cầu cụ thể của bên A
Thời gian giao hàng 2~3 tháng
Điều khoản thanh toán L/C, T/T, Liên minh phương Tây
Khả năng cung cấp Hoàn thành chuỗi cung ứng sản xuất, cung cấp đúng hạn và đáp ứng các tiêu chuẩn chất lượng

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Làm nổi bật

50 ton electric arc furnace

,

metal silicon electric arc furnace

,

large capacity hazardous waste furnace

Bạn có thể đánh dấu vào các sản phẩm bạn cần và liên lạc với chúng tôi trong bảng tin.
Để lại lời nhắn
Mô tả sản phẩm
Features
Electric Arc Furnace Characteristic:
1. Smelting temperature is flexible to be controlled, and meets different steel grade production needs.
2. High heat efficiency, the atmosphere inside the furnace can be controlled.
3. Can remove the phosphorus, sulfur, oxygen, and other impurities and improve steel quality.
4. Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5. Equipment is a simple and shorter technological process.

Service:
- We can provide a foundation layout and arrangement diagram
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
- Competitive price & excellent quality
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption
As a professional Electric Arc Furnace, Induction Furnace, and Submerged Arc Furnace manufacturer in China, we can supply
designing, manufacturing, installation, and commissioning of the equipment with "turn-key" service. We can also design,
manufacture and revamp other non-standard equipment according to the requirements of users.
Please send us more information about your project, we would like to give you our proposal immediately after getting your details.
Sincerely welcome you to come and visit our plant.

Specification
Model
Furnace enclosure inner diameter
(mm)
Rate capacity/Max capacity (ton)
Furnace transformer
Reactor power
(KVA)
Electrode pitch circle diameter
Electrode diameter(mm)
Rated power
(KVA)
Secondary voltage
(V)

HX-0.5
2000
0.5/1
630
200-98
120
500
150
HX-1.5
2200
1.5/3
1250
210-104
200
650
200
HX-3
2600
3/8
2200
210-104
250
750
250
HX-5
3200
5/12
3200
221-110
320
850
300
HX-10
3500
10/16
5000
240-121
360
1000
350
6300
260-139
360
HX-15
3700
15/20
6300
260-139
340
1000
350
9000
260-139
HX-20
4000/
4200
20/32
9000
260-139
/
1000
350
12500
340-195
/
1050
400
16000
375-200
/
1050
400
HX-30
4600
30/45
16000
375-200
/
1100
450
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
HX-50
5000
50/60
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
35000
670-370
7800
1100
450
HX-80
5800
85/95
35000
650-350
6800
1100
450
40000
690-390
8500
1250
500
50000
800-500
9800
1300
500
HX-100
6200
100/120
35000
670-520-370
7800
1100
450
50000
800-650-340
9800
1300
500
63000
920-720-480
13000
1350
600



Key attributes


video outgoing-inspection
Provided
key selling points
Energy saving
type
Arc Furnace
core components
PLC, motor, Pump
usage
Melting Furnace
machinery test report
Provided
warranty
1 Year
voltage
10KVA
weight (t)
50 T
power (kw)
4000
place of origin
Shaanxi, China
brand name
HAN
dimension(l*w*h)
Customization Size
Keyword
Melting Funace
Heat Source
Electric Arc
Melting Material
Scrap Steel
Final product
Quality Carbon Steel
Raw material
Scrap Steel Iron
Feature
Energy Saving
Application
Steel making
Capacity
50ton
Furnace type
Top Loading
Product Name
Electric Arc Furnace

Packaging and delivery

Packaging Details
Conventional plastic sealing/outer box packaging for mechanical equipment.
Port of dispatch
Shenzhen,Shanghai,Ningbo,Accepting customer-defined ports
Selling Units
Single item

Supply capacity

Supply Ability
1 set per Month
